NESPERT Duct


Purpose

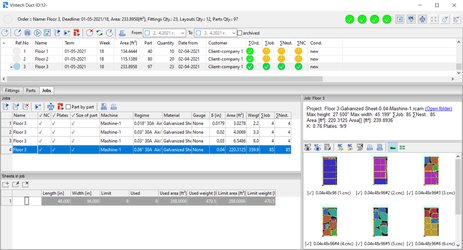

nespert-duct-general-view.pngNESPERT Duct - general view



NESPERT Duct  is a CAD/CAM system for parametric design and NC programming of orders for unfolds of fittings of HVAC systems:

  • Designs flat patterns of duct parts using libraries with parametric macros for rectangular, round and conical fittings, taking into account the assembling technology,
  • creates automatic and interactive true shape nesting and NC programming,
  • manages orders and organises CNC manufacturing.

The NESPERT Duct bundle includes:



  • NESPERT Duct – CAD/CAM system for parametric design, true shape nesting, NC programming and pricing of orders for flat patterns of fittings of HVAC systems.

  • Library NESPERT rDuct – parametric rectangular, round and conical fittings and transitions between them;

  • NESPERT CAM based functionality for true shape nesting and NC programming.

  • NESPERT NCV – verifier of NC programs for thermal cutting, with DNC for program packages on the RS-232 serial interface to CNC controllers as Burny, Linatrol, Mazatrol, Amada.

Characteristics

  • Manages data for nesting orders consisted of sheet parts.
    The parts are created by inputting parametric dimensions in macros from the fittings libraries or by importing their CAD geometry from files created with universal CAD system,

  • Creates fittings from parametric macros according to assembly, technological and customer requirements for creating the plat patterns of their parts.NESPERT-Duct-Panel for creating and editing of fittings.png

  • Controls the sequence of creation stages of nesting orders, parts, nesting jobs, nesting layouts, NC programs, labels and inquiries

  • Allows editing of parts from the nesting order using universal CAD system and their replacement in the order

  • Prepares nesting jobs based on orders and visualizes the status of the job

  • Automates the creation of processing technologies using Datasets database.

  • Monitors the information and status of every single part; Provides advanced tools for managing changes in orders,

  • Saves NC program package and submits it to the DNC system in NESPERT NCV

  • Saves listings for nesting layouts and marking labels for the parts in the sequence of their cutting.

NESPERT rDuct is a set of parametric libraries for rectangular, round, conical air duct fittings, transitions between them and standard flat parts.

Each fitting from the library is selected visually and the geometrical parameters are entered directly in the dimensions in its draft.NESPERT-Duct-library.png

A created fitting can be saved for later use in normal to a parametric fitting.

Working with library NESPERT rDuct allows for:

  • adding fitting in order by setting parameters or by selection from normal, with no need for a CAD system.
  • automatic break down of fitting to flat parts.
  • compensation of elongation or contraction of bended parts.
  • NESPERT-Duct-Seams and Flanges Datasets.pngLimits the incorrect actions with the system to the highest degree.
  • Works in mm or inches and gauges. Supports weight of the materials in kg or lb.
  • Takes into account the requirements of the HVAC ducts production. Allows the user to define:
    • type and size of connections/flanges,
    • type and size of seams and slits,
    • markings – with labels or with ink-jet printer.
  • Supports types and dimensions of seams and flanges in technological datasets,
  • Opens nesting job from NESPERT Duct and creates nesting layouts and NC programs

  • Provides user interface with integrated methods for nesting and processing technology management. Provides a new standard for usability with Project navigator,  Layouts, Blocks and Parts galeries, interactive nesting with „handles“, paths with „handles“ and „halos“, etc.
  • Nests automatically and interactively with true shape or in a pattern, with on-line control against overlapping,

  • Creates multi-plate nesting on whole plate blanks or usable remnants

  • Creates paths with optimisation according to the type and length of the contours, with on-line control against overlapping,

  • Automatically and interactively solves special tasks for true shape nesting, such as common cuts, chain cutting, circumventing parts with cutting paths, cutting with bridges and others,

  • Optimises the sequence for cutting parts,  taking into account the part-in-part nesting and nesting levels. It allows interactive creation of the route of rapid moves.

  • NESPERT Duct uses a configurable postprocessor to generate NC programs for CNC machines for thermal cutting, and:

    • generates NC programs in ISO/EIA and ESSI command systems,

    • allows the creation of NC programs for cutting and text marking,

    • allows the creation of NC program packages for orders.

  • Generates documents from the current job in HTML, DXF and PDF. When needed, the listings follow the cutting sequence of the layouts and parts in the order.

    NESPERT Duct generates:

    • nesting layout listing file,

    • label listing file,

    • technological and organisational documents.

NESPERT NCV is designed for verification of NC programs and program packages for thermal and jet cutting.

NC program verification

NESPERT NCV creates a graphic simulation of the processing path of ESSI and ISO / EIA NC programs, and:

  • checks for correspondence between the NC commands and the paths of the graphic simulation,

  • verifies NC programs with subroutines in absolute or relative coordinates, with translation and / or rotation of the subroutines,

  • allows direct editing of the NC programs,

  • uses CNC machine profiles to verify programs with different structure and format,

  • monitors program registers and calculates the number of pierce points, the time and distance for rapid and cutting moves,

  • creates a technological sketch of the NC program in PDF and a specification in HTML.

NESPERT NCV loads NC programs and NC program packages in the CNC controller via serial DNC interface. Allows management of the DNC interface by the CNC controller.

  • Loads NC programs in the order of processing, allows selection and loading a single plate or part from a plate.

NESPERT NCV converts ISO / ESSI NC programs in AutoCAD DXF file format.



System requirements and localizations

The CAM systems NESPERT Duct works in 64 or 32 bit mode in the environment  of:

  •  Microsoft Windows 10,11.

It is localized in English and Bulgarian.There are no limitations for the localization language in the system.

The licenses are activated by a hardware key WIBUBox/U+.

The key is installed in a USB port of a local computer or file server in the factory's network.

The license for NESPERT Duct is a local licence and for NESPERT NCV it is a network license.
